Modular Design Outdoor Digital Display Board / Outdoor Rental Led
Display
Outdoor Digital Display Board Main Features
1) Energy saving to save cost.
2) Front maintenance to save space.
3) Wifi, 4G, cloud, usb, remote control.
4) All weather resistant for stable operation.
5) High brightness provide perfect performance.
Outdoor Digital Display Board Description
Product mode:P5-8S | Module resolution:64dots |
Module size:320*160mm | Maximum power consumption:50W |
Physical point spacing:5mm | Module thickness:17.05mm |
Light point color:1R1G1B | Module weight:0.5KG |
LEDPackage:SMD2727/ 2525 | Drive mode: the constant current drive |
Outdoor Digital Display Board Details

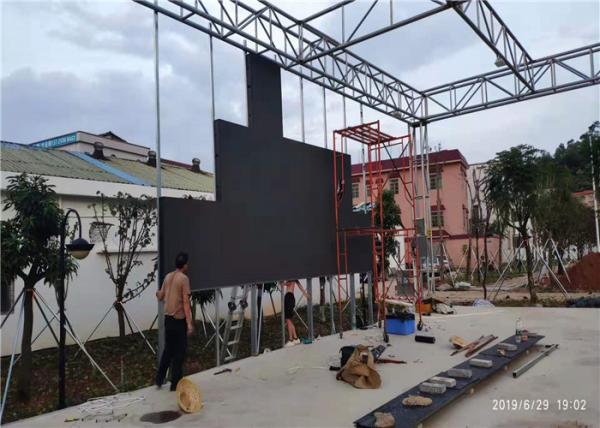

1. Modular design for quick installation and removal;
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition;
3. High refresh rate up to 4200Hz, no flashing live video;
4. Super brightness and color uniformity, pixel calibration before
leaving the factory;
5. Horizontal/vertical viewing angle up to 120° uniform HD display,
no color cast, no color spots, no color blocks.
Outdoor Digital Display Board Specification (parameter):
Shenzhen jingcaiyuan electronic technology co. LTD |
OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS |
Unit Module
| Item | Parameter |
| Model Number | P5-8S |
| Module size | 3200mm*160mm |
| Pixel pitch | 5mm |
| Pixels Density | 40000 dots/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2727 SMD2525 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max Power | 50W |
| Module thickness | 17.05mm |
| Weight | 0.5kg |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Port type | HUB75 |
| Brightness of white balance | ≥6500cd/m2 |
LED Cabinet | Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs |
| Power supply | 5V/60A*2 pcs |
| Thermal discharge | fan 1pcs |
| Pixel per cabinet | 128mm*128mm |
| Best viewing distance | 5M～100M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ |
|
| working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 85mm |
Power | Working voltage | AC220V±10% |
| Average Power consumption | <390W/㎡ |
| Max.Power consumption | <980W/㎡ |
| Current | <20mA(single LED) |
Control system
| CPU | Pentium4 or above P4 |
| Operation system | XP/WIN7 |
| Control method | Synchronization |
Main technical parameter
| Driving device | Constant drive IC |
| Refresh frequency | >1920HZ |
| Grey scale/colors | 16384gray level/16.7M colors |
|
| 16384gray level/16.7M colors |
| MTBF | >9000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
Competitive advantages:
Installation service, usually we are not responsible for overseas
installation, but we can
Provide technical support for you. If you need to install the
service, we can send us
Technicians come to your country, but the cost is paid by the
customer.
Free lifetime maintenance and software upgrades.
If you have any questions about the led display, we will reply you
within 24 hours.
Provide maintenance instructions and problem resolution within 48
hours.
Provide customers with loaders so they can be used immediately
after installation
Led display, no need to debug
Free technical training on how to use and process software.
