LED full color display P1.25 P1.875 P2 P2.5 P3 P1.5 small pitch
advertising screen indoor
Features of this indoor pixel pitch: 1.25mm, 1.5mm, 1.6mm, 1.8mm,
1.9mm, 2mm led screen hd video and image display
1) Super small pixel pitch, show ultra hd image and video for
advertising and rental market;
2) High precision and best quality LED and Drivers, high refresh
rate, high grey level;
3) Small panel, one panel one receiving card, easy to operate and
move;
4) Die Cast Aluminum Cabinet, durable and won't deform;
5) Support Different Input and output signals.
Details
1. Modular design for quick installation and removal
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition
3. High refresh rate up to 4200Hz, and live video without flashing
at all
4. Super brightness and color uniformity, pixel calibration before
leaving the factory
5. Horizontal / vertical viewing angle up to 120° uniform HD
display, no color cast, no color spots, no color blocks

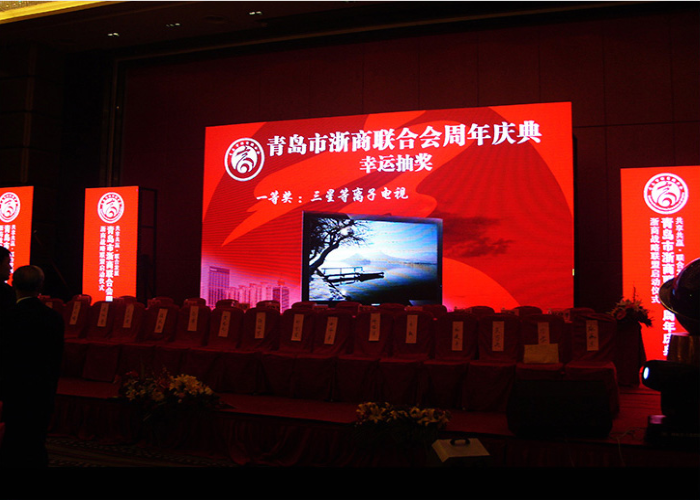

Application:
Full color screens are widely used in government and enterprise
projects, exhibitions, cultural tourism, commercial real estate,
outdoor advertising media and other fields. For example:
supermarkets, restaurants, travel agencies, commercial plazas,
cinemas, clubs, schools, hotels, hospitals, communities, commercial
buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we
will do our best to meet trends and needs.
Description:
| Module size:200*150mm | Module resolution:160*120 |
| Module type: light and drive in one | Drive mode: constant current drive |
| Module working voltage: +4.2V | Point spacing:1.25mm |
| Module average power: 12W | Pixel composition:1R1G1B |
| Module maximum power: 26W | Vertical viewing angle:140° |
Specification (parameter):
Unit cabinet
| Module distribution | 2*2 block |
| Cabinet resolution | 320*240 |
Maximum power of cabinet | 104W |
| Cabinet average power | 52W |
| Module uniformity | ＜5％ |
| Cabinet size | 400*300mm |
| Cabinet color | black, grey |
Protection degree (front/back) | IP43 |
Full screen
| Application | indoor |
| White balance brightness | ≥700cd/m2 |
| Color temperature | 9600K |
| Pixel density (dots/square meter) | 640000 |
| Power supply | AC220V/50HZ AC110/60HZ |
| Earth leakage current | ＜2mA |
| Working temperature | -25℃ to 45℃ |
Working environment humidity | 10％-50％ |
| Environmental temperature | -40℃ to 80℃ |
| Frame change frequency | 60Hz |
| Refresh rate | ≥3000Hz |
| Optimum line of sight | ≥1.25m |
| Grayscale/color | 281 trillion |
Brightness adjustment software | Software 16-level adjustment / 16-level automatic |
| control mode | Synchronized displays with computer screen |
Competitive advantages:
- Installation service, usually we are not responsible for overseas
installation, but we can provide technical support for you. If you
need this, we can arrange our technicians to your country, but the
cost is paid by the customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you
within 24 hours, and provide maintenance instructions and problem
resolution within 48 hours.
- Providing customers with loaders so they can use the display
immediately after installation
- Led display, no need to debug
- Free technical training about how to use and process software.
