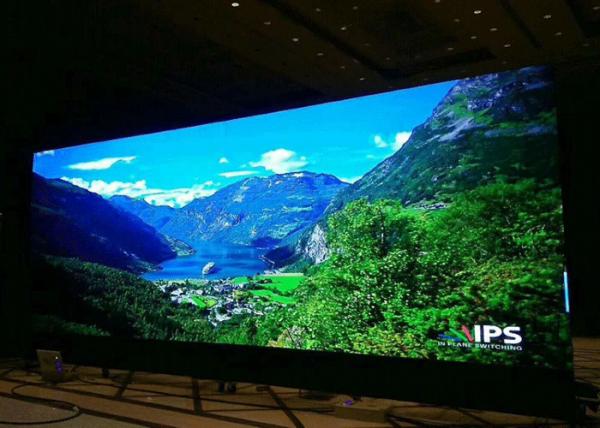

Commercial Stage Led Screen High Precision Pixel Pitches Dustproof
For Shopping Malls
- Application areas: indoor media, exhibition display, billboards,
information display, hotel, station, airport etc.
- Humanized brightness adjustment
- The external sensor can adapt to the environment, and its playback
quality will not be affected by ambient light.
- Single point of brightness and color temperature correction
technology
- Guarantee of good consistency of display screen. Single point
correction technology is the core of LED display technology, it
allows hundreds of thousands of LED lights on the same panel to
glow uniformly, making the screen brightness and color temperature
highly unified.
- Ultra high refresh rate
- Intake five black screen picture stability without ripples, dealing
with the dynamic display screen, and the image edge is clear. With
good dynamic performance, the image information is restored
accurately, make the video screen clear fluid, bring good visual
enjoyment.
Details
1. Modular design for quick installation and removal
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition
3. High refresh rate up to 4200Hz, and live video without flashing
at all
4. Super brightness and color uniformity, pixel calibration before
leaving the factory
5. Horizontal / vertical viewing angle up to 120° uniform HD
display, no color cast, no color spots, no color blocks
Application:
Full color screens are widely used in government and enterprise
projects, exhibitions, cultural tourism, commercial real estate,
outdoor advertising media and other fields. For example:
supermarkets, restaurants, travel agencies, commercial plazas,
cinemas, clubs, schools, hotels, hospitals, communities, commercial
buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we
will do our best to meet trends and needs.
Description:
| Module size:200*150mm | Module resolution:160*120 |
| Module type: light and drive in one | Drive mode: constant current drive |
| Module working voltage: +4.2V | Point spacing:1.25mm |
| Module average power: 12W | Pixel composition:1R1G1B |
| Module maximum power: 26W | Vertical viewing angle:140° |
Specification (parameter):
Unit cabinet
| Module distribution | 2*2 block |
| Cabinet resolution | 320*240 |
Maximum power of cabinet | 104W |
| Cabinet average power | 52W |
| Module uniformity | ＜5％ |
| Cabinet size | 400*300mm |
| Cabinet color | black, grey |
Protection degree (front/back) | IP43 |
Full screen
| Application | indoor |
| White balance brightness | ≥700cd/m2 |
| Color temperature | 9600K |
| Pixel density (dots/square meter) | 640000 |
| Power supply | AC220V/50HZ AC110/60HZ |
| Earth leakage current | ＜2mA |
| Working temperature | -25℃ to 45℃ |
Working environment humidity | 10％-50％ |
| Environmental temperature | -40℃ to 80℃ |
| Frame change frequency | 60Hz |
| Refresh rate | ≥3000Hz |
| Optimum line of sight | ≥1.25m |
| Grayscale/color | 281 trillion |
Brightness adjustment software | Software 16-level adjustment / 16-level automatic |
| control mode | Synchronized displays with computer screen |
Competitive advantages:
- Installation service, usually we are not responsible for overseas
installation, but we can provide technical support for you. If you
need this, we can arrange our technicians to your country, but the
cost is paid by the customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you
within 24 hours, and provide maintenance instructions and problem
resolution within 48 hours.
- Providing customers with loaders so they can use the display
immediately after installation
- Led display, no need to debug
- Free technical training about how to use and process software.
