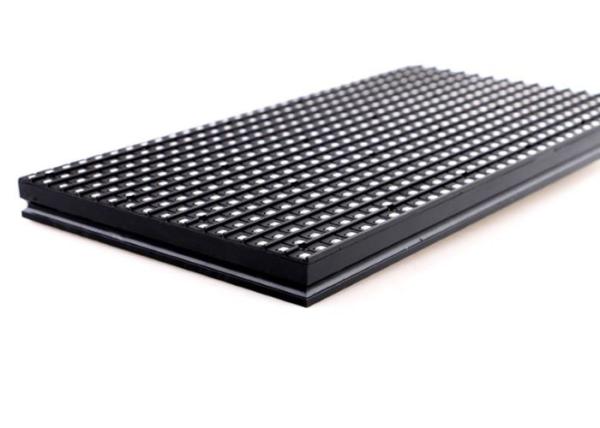

Outdoor P4.81 SMD full color LED display module with high refresh
drive IC
Specification (parameter) of Indoor LED Display Module :
| product name: | LED display module | standard: | CB / CE / ROHS / FCC / ISO2001 |
| Pixel spacing: | 4.81 mm | Number of modules: | 1 |
| Resolution: | High-brightness Epistar chip | Driver IC: | MBI5124 |
| Tube chip color: | Full color | Module size (width * height): | 250 mm * 250 mm |
Details of Indoor LED Display Module
1. Modular design for quick installation and removal.
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition.
3. High refresh rate up to 4200Hz, no flashing live video.
4. Super brightness and color uniformity, pixel calibration before
leaving the factory.
5. Horizontal/vertical viewing angle up to 120° uniform HD display,
no color cast, no color spots, no color blocks.
Application
Full color screens are widely used in government and enterprise
projects, exhibitions, cultural tourism, commercial real estate,
outdoor advertising media and other fields. For example:
supermarkets, restaurants, travel agencies, commercial plazas,
cinemas, clubs, schools, hotels, hospitals, communities, commercial
buildings, subway stations, airports, etc.
In short, many places need led screens for various purposes, we
just do our best to meet trends and needs.
Specification (parameter):
P4.81 SMD full color screen technical parameters
| Resolution / mm | 4.81 |
| Pixel configuration | 1R1G1B |
| Pixel density / pixel / m ^ 2 | 43222 / m ^ 2 |
| Module resolution | 64 points x64 points |
| Module size / mm | 250x250 mm |
| Line of sight | 4-300 meters |
| Single point brightness adjustment | Can be added |
| Single point color adjustment | Can be added |
| White balance brightness | 5000 cd / m ^ 2 |
| Color temperature | 6500K-9500K |
| Horizontal viewing angle | 120(degree) |
| Vertical viewing angle | 60(degree) |
| Signal processing bit | 10 or 16bit |
| Gray process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distance | Network cable: 100m, multi-film: 500m, single film: 2km |
| Driving mode | Constant drive current |
| scanning method | (1/13 scan) |
| Frame rate | 60 Hz |
| Refresh rate | > 3000Hz |
| way to control | Computer synchronization |
| Brightness adjustment range | Manual, automatic operation, continuous adjustment |
| Out of control point | <1/10000 |
| operating hours | ≥72 hours |
| Mean time between failures | > 10000 hours |
| lifetime | 100000 hours |
| All white (half the brightness) | 100000 hours |
| Ambient temperature range | Operating temperature range: -20-45 ° C |
| Maximum power: / ^ 2 | <700W |
| Average power: / ^ 2 | <200W |
| Self-test technology | LED check, communication check, power check, |
| Remote monitoring | Remote monitoring, recording potential failures,
A warning signal is sent to the operator. (needs customization) |
| Software Environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centers | Deviation <3% |
| Brightness uniformity | <10％ |
| Color uniformity (chromaticity coordinates) | ±0.003 |
| Power requirement | AC85-264V(50Hz-60Hz) |
| Compared | (1000:1) |
| System protection | Moisture proof, dustproof, high temperature protection,
anti-corrosion, anti-burning, anti-static, anti-vibration |
| Humidity (work) | Work: 10-95% |
| Humidity (storage) | Storage: 10-95% |
| product name | Outdoor p4.81mm patch full color LED module with 64dots x 64dots
resolution |
| service | Your inquiry will be answered within 12 hours. |
| brand | SCX |
| material | Stainless steel, aluminum, steel, epoxy |
| project | Indoor P2 P2.5, P3, P3.91P4, P5, P6, P7.62
Outdoor p3.91 P4, P5 P6, P8, P10, P12, P16, P20 |
| feature | High brightness, good resolution, stable operation and easy
installation. |
| grade | IP43-IP65 |
| Driving mode | 1/13 |
| stock | Regular items for led displays are in stock. |
| Color temperature | 6500-9500K |
| Packing | Air box, plywood box or custom packaging |
| Power requirement | AC85-264V(50HZ-60HZ) |
| delivery time | Within 7-30 days depending on the size and quantity you need. |
| Scope of use | Shopping center, bank, bus station, train station, city center,
airport, school, factory, bus, taxi, etc. |
Competitive advantages:
- Installation service, usually we are not responsible for overseas
installation, but we can
- Provide technical support for you. If you need to install the
service, we can send us
- Technicians come to your country, but the cost is paid by the
customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you
within 24 hours.
- Provide maintenance instructions and problem resolution within 48
hours.
- Provide customers with loaders so they can be used immediately
after installation
- Led display, no need to debug
- Free technical training on how to use and process software.
