RGB Outdoor Full Color LED Display Screen Reliable System Long
Service Life
1. Modular design for quick installation and removal
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition
3. High refresh rate up to 4200Hz, no flashing live video
4. Super brightness and color uniformity, pixel calibration before
leaving the factory
5. Horizontal/vertical viewing angle up to 120° uniform HD display,
no color cast, no color spots, no color blocks
Description
| Aapplication: | outdoor | Module size: | 256x128 mm |
| Pixel spacing: | 8 mm | Pixel density: | 15625 points / m2 |
| scanning method: | 1/4 | Cabinet size: | 1024 * 1024 mm |
| Cabinet weight: | 30kg / square meter | Refresh rate: | > 1200Hz |
| Package form: | Patch 3535 | Best viewing: | 8m |
| Brightness: | 6000cd / square meter | Color temperature: | 5000 - 6000 thousand |
Details
1) High reliability: using distributed scanning technology and
module design technology for higher reliability
Reliability and stability.
2) The system is stable and reliable: strong anti-interference
ability, long service life, continuous use
Working for more than 24 hours, it is very easy to operate the
system.
3) Wide viewing angle: both horizontal and vertical viewing angles
are suitable for wide viewing angles
horizon.
4) Error detection and monitoring: can monitor internal
temperature, voltage, cooling fan, etc.
Automatically detect errors.
5) Environmental protection, anti-static, dustproof, good heat
dissipation and high cost performance.
6) Energy saving: low current, high brightness lamp, equipped with
PFC switching power supply, can save 30%.
Application

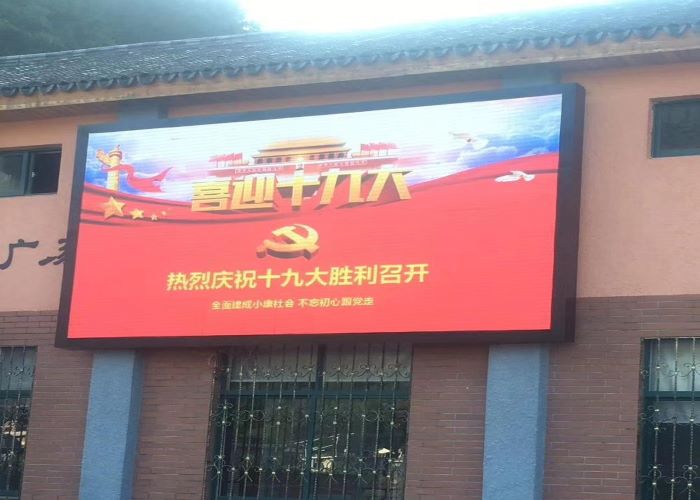

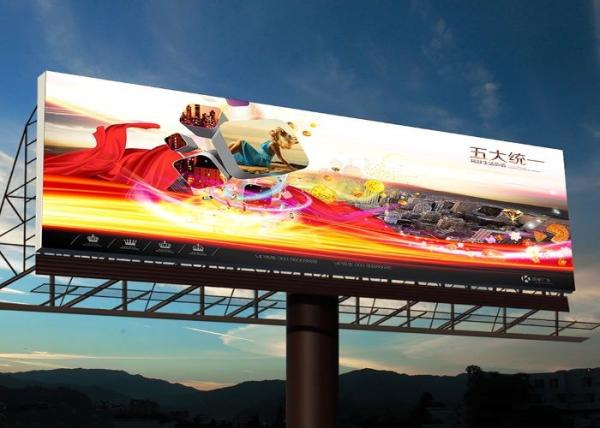

Outdoor large digital LED display signage application: Widely used
in advertising media, concerts, TV shows, shopping malls,
entertainment venues, schools, government, trade dialogues, trade
fairs, exhibitions, cinemas, press conferences, conference rooms,
airports, hotels, station halls and other public place.
Outdoor large digital LED display panel specifications:
Specification (parameter):
| Indoor patch P3 |
| Resolution / mm | 3 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density / pixel / m2 | 111111 / square meter |
| Module resolution | 64x64 |
| Module size / mm | 192 * 192 |
| Line of sight | ≥0.5m |
| Single point brightness adjustment | Can be added |
| Single point color adjustment | Can be added |
| White balance brightness | > 2500cd /m2 |
| Color temperature | 6500K-9500K |
| Horizontal viewing angle | 120 (degrees) |
| Vertical viewing angle | 60 (degrees) |
| Signal processing bit | 10 or 14 |
| Gray process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distance | Network cable: 100m, multi-film: 500m, single film: 5km |
| Driving mode | Constant drive current |
| scanning method | 1/32 |
| Frame rate | 60 Hz |
| Refresh rate | > 4200Hz |
| way to control | Computer synchronization |
| Brightness adjustment range | Manual, automatic operation, continuous adjustment |
| Out of control point | <1/10000 |
| operating hours | ≥72 hours |
| Mean time between failures | > 5000 hours |
| lifetime | 100,000 hours |
| All white (half the brightness) | 50000 hours |
| Ambient temperature range | Operating temperature range: -20-45 ° C Storage temperature range:
-30-65 ° C |
| Maximum power: /m2 | <1000W |
| Average power: /m2 | <280W |
| Self-test technology | LED check, communication check, power check, |
| Remote monitoring | Temperature monitor (requires customization) |
| Software Environment | Remote monitoring, recording potential failures, |
| Luminous point width between centers | A warning signal is sent to the operator. (needs customization) |
| Brightness uniformity | Windows NT, Windows 1999, Windows XP |
| Color uniformity (chromaticity coordinates) | Deviation <3% |
| Power requirement | <10% |
| Compared | ±0.003 |
| System protection | AC85-264V (50Hz-60Hz) |
| Humidity (work) | (1000:1) |
| Humidity (storage) | Moisture proof, dustproof, high temperature protection,
anti-corrosion, anti-burning, anti-static, anti-vibration |
Competitive advantages:
- Installation service, usually we are not responsible for overseas
installation, but we can
- Provide technical support for you. If you need to install the
service, we can send us
- Technicians come to your country, but the cost is paid by the
customer.
- Free lifetime maintenance and software upgrades.
- If you have any questions about the led display, we will reply you
within 24 hours.
- Provide maintenance instructions and problem resolution within 48
hours.
- Provide customers with loaders so they can be used immediately
after installation
- Led display, no need to debug
- Free technical training on how to use and process software.
