Outdoor P10 Full Color Module LED Display Electronic Advertising
Large Screen Engineering Board
Description:
- Template Size: 320mm*160mm
- Template resolution: 32*16
- Color: full color
- Cabinet size: 900 mm * 900 mm
- Maximum power: 850 watts
- Light: Amd3535
- Drive mode: 1/4 scan constant current
- Guarantee: 2 years
- Life: >100,000 hours
- Brushing rate: ≥1200Hz
Details
- P10 outdoor standard waterproof LED screen cabinet
- High brightness and high refresh rate
- High brightness, clear picture, energy saving and environmental
protection, long life
- Strong waterproof, strong anti-UV and anti-vulcanizing ability
- Personalize and complete solutions for your case
Application:

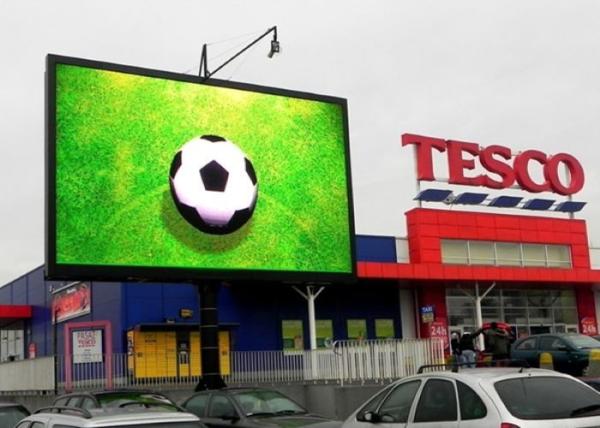

Full color screens are widely used in government and enterprise
projects, exhibitions, cultural tourism, commercial real estate,
outdoor advertising media and other fields. For example:
supermarkets, restaurants, travel agencies, commercial plazas,
cinemas, clubs, schools, hotels, hospitals, communities, commercial
buildings, subway stations, airports, etc. In short, many places
need LED screens for various purposes, we just do our best to meet
trends and needs.
Specification (module parameters):
| Product type | ΦP10 full color |
| Pixel structure | surface mount three in one |
| LED Specifications | SMD3535 |
| Unit board size | 320 × 160mm |
| Power requirements | 5V |
| Brightness | 5000nits adjustable |
| Vertical viewing angle | 120 degrees |
| Frame change frequency | 60Hz |
| Life expectancy | ≥100,000 hrs |
| Installation method | Pre-magnetic maintenance / cabinet |
| Pixel pitch | 10mm |
| Resolution | 32×16dots |
| Pixel density | 10000pixels/m2 |
| Average power consumption | 350W/m2 |
| Horizontal viewing angle | 120 degrees |
| Gray level | 12/14/16bit |
| Drive mode | 1/4S constant current drive
|
| Refresh rate | ≥1920Hz |
| Mean time without failure | ≥10000hrs |
| Maintenance method | front/rear maintenance |
| Product Name | ΦP10 full color LED display parameters
|
| Angle of view (degrees) | H120 V120 |
| Visual distance (m) | 10-70 |
| Maximum power | 850 Vatt |
| Frame rate (Hz) | ≥60 |
| Refresh screen rate | ≥1200 |
| Balance brightness | ≥6500 |
| Working environment temperature (degrees) | -30 - 60 |
| Display operating voltage (VAC) | 220V±15％ / 110V±15％ |
| Grayscale/color | ≥16.7M color |
| Input signal | RF S-Video RGB, etc. |
| Control System | Nova/Linsn Control System |
| Mean time between failures (hours) | ＞5000 |
| Life (hours) | ＞100,000 |
| Lamp failure frequency | ＜0.0001 |
Competitive advantages:
Installation service, usually we are not responsible for overseas
installation, but we can provide technical support for you. If you
need to install the service, we can send our technicians to your
country, but the cost of the customer is free of lifetime
maintenance and software upgrades.
If you have any questions about the led display, we will reply you
within 24 hours.
Provide maintenance instructions and problem resolution within 48
hours.
Provide customers with a loader so they can use the led display
immediately after installation, eliminating the need to debug free
technical training on how to use and process the software.
Customer satisfaction tracking report.
